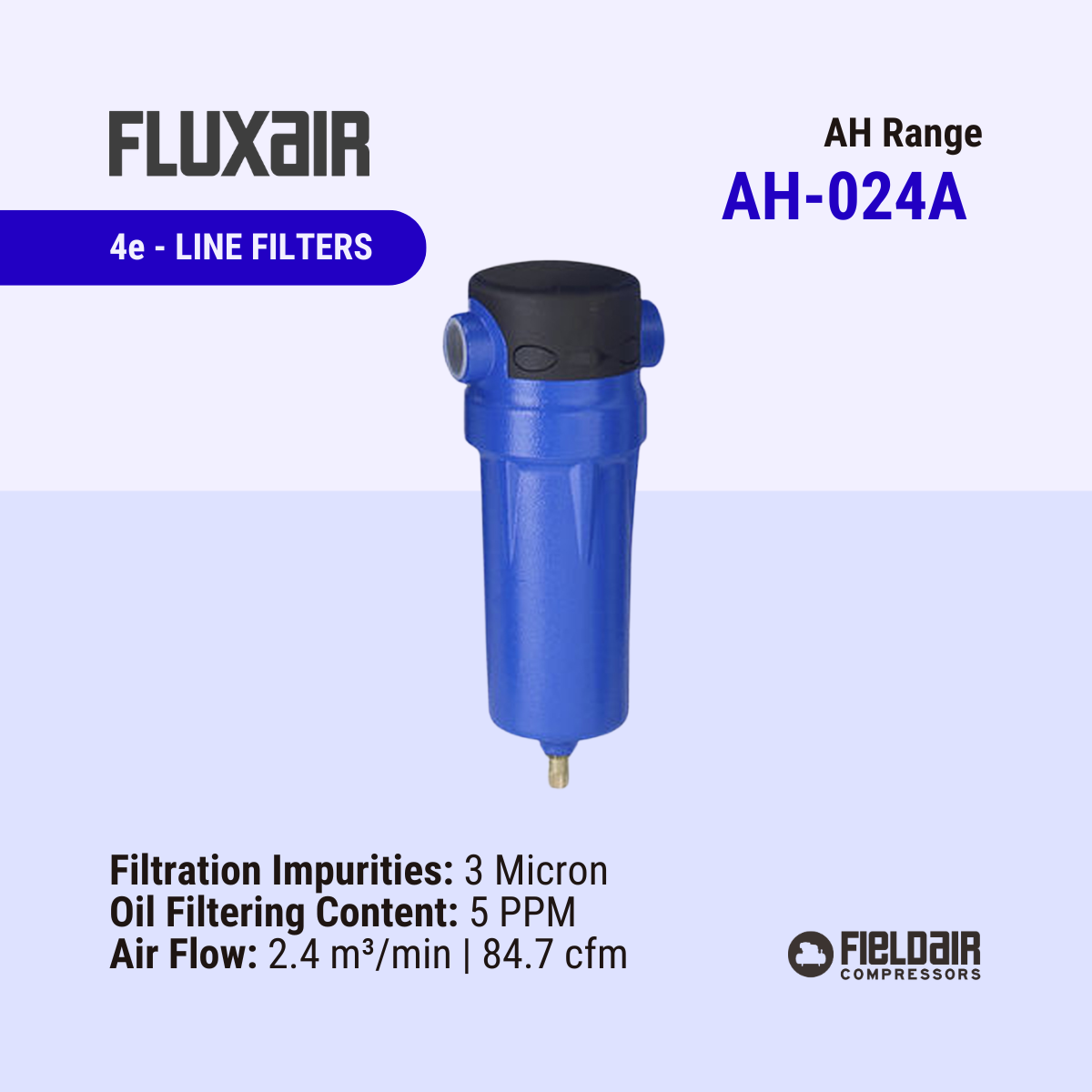

Fluxair AH-024A

Range: AH-024

For each range there is are 3 options of Grade A, Grade B & Grade C Filters. We recommend utilising a 3-stage filtration process to achieve up to 99.9% contaminant removal, ensuring clean, high-quality air output.

SKU: 239-FLUX-AH-024A Categories: 4 - Downstream, 4e - Line Filters (239) Tag: Line Filter

Product Overview
Specifications

Range Specifications

Specification	AH-024A	AH-024B	AH-024C
Filtration Impurities	3 micron	1 micron	0.01 micron
Oil Filtering Content	5 PPM	0.5 PPM	0.001 PPM
Connecting Size	G 1"～1 1/2"	G 1"〜1 1/2"	G 1"〜1 1/2"
Air Flow	2.4 m3/min (84.7 cfm)	2.4 m3/min (84.7 cfm)	2.4 m3/min (84.7 cfm)
Max Pressure	10 bar	10 bar	10 bar

Weight	2.2 kg
Dimensions	51.3 × 31 × 10.9 cm
Brand	Fluxair
239 - Filtration Impurities	3 micron
239 - Oil Filtering Content	5 PPM
