Field Air Compressors - 4e - Line Filters - Fluxair AH-150A

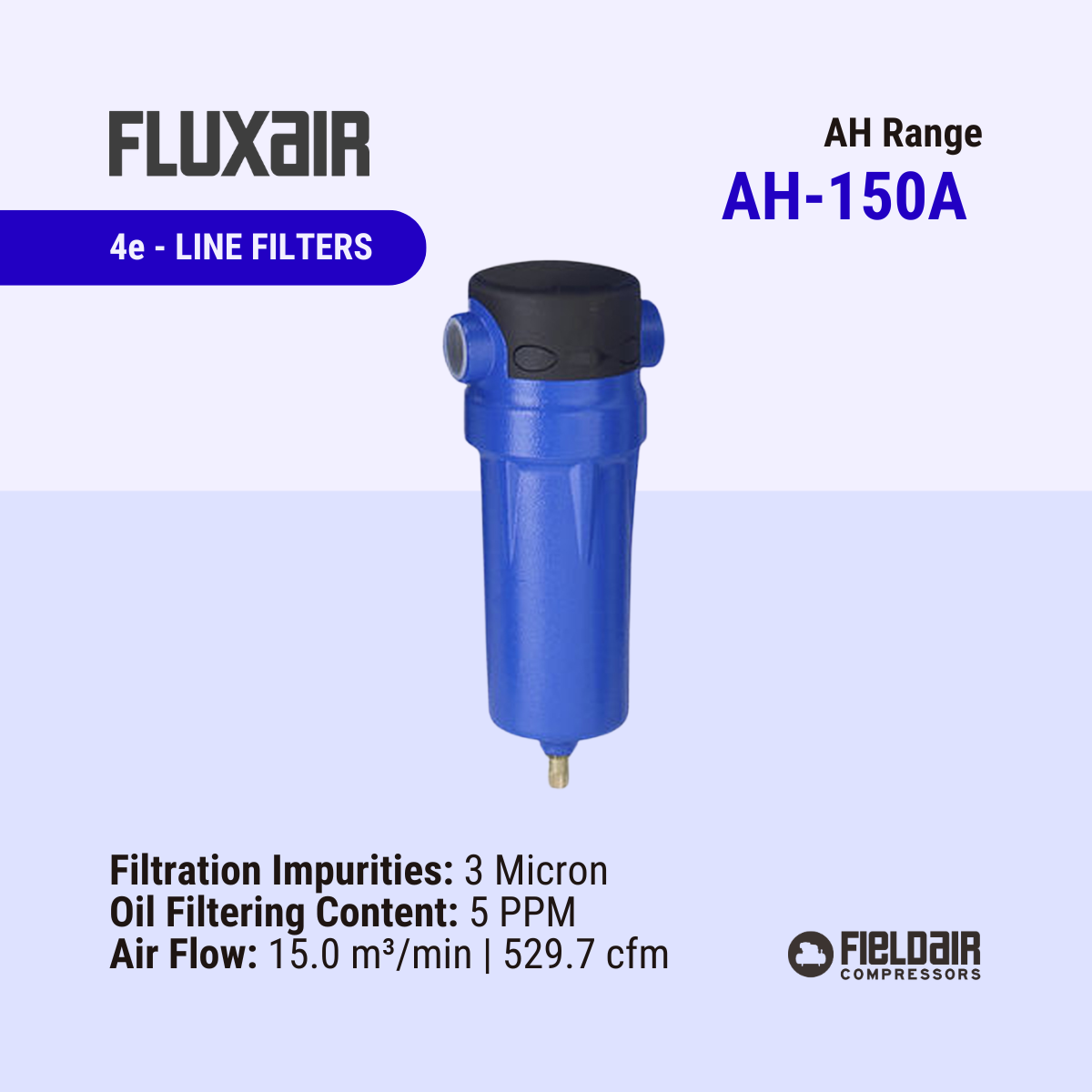

Fluxair AH-150A

Range: AH-150

For each range there is are 3 options of Grade A, Grade B & Grade C Filters. We recommend utilising a 3-stage filtration process to achieve up to 99.9% contaminant removal, ensuring clean, high-quality air output.

SKU: 239-FLUX-AH-150A Categories: 4 - Downstream, 4e - Line Filters (239) Tag: Line Filter

Product Overview
Specifications

Range Specifications

Specification	AH-150A	AH-150B	AH-150C
Filtration Impurities	3 micron	1 micron	0.01 micron
Oil Filtering Content	5 PPM	0.5 PPM	0.001 PPM
Connecting Size	G 2"〜2 1/2	G 2"〜2 1/2	G 2"〜2 1/2
Air Flow	15.0 m3/min (529.7 cfm)	15.0 m3/min (529.7 cfm)	15.0 m3/min (529.7 cfm)
Max Pressure	10 bar	10 bar	10 bar

Weight	16 kg
Dimensions	92.8 × 88.7 × 15 cm
Brand	Fluxair
239 - Filtration Impurities	3 micron
239 - Oil Filtering Content	5 PPM
